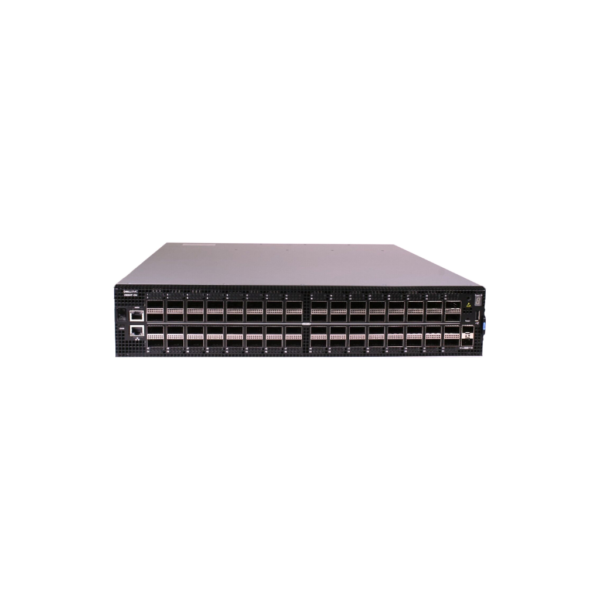

Dell PowerSwitch Z9264F-ON
$29,999.00
The Dell PowerSwitch Z9264F-ON is a 64 port 100GbE, 2U Switch
- Description
- Additional information
- Pricing
- Documentation
Description
The Dell PowerSwitch Z9264F-ON is a high-density, 100GbE 2U rackmount switch designed for demanding data center environments.
Key Features
- High Density : Offers a large number of 100 Gigabit Ethernet ports in a compact form factor.
- Open Networking: Supports a choice of network operating systems for greater flexibility and vendor choice.
- Multi-Rate Capabilities: 100GbE ports support speeds down to 10GbE, providing investment protection and deployment flexibility.
- High Performance: Up to 12.8Tbps switching capacity delivers line-rate performance with very low latency.
- Open Networking: Supports ONIE for zero-touch installation and is compatible with Dell EMC’s OS10 and select third-party network operating systems.
- Data Center Bridging (DCB): Supports PFC, ETS, and DCBX, optimizing it for converged network traffic.
- Layer 2 and Layer 3 Features: Supports advanced Layer 2 switching and Layer 3 routing (OSPF, BGP), QoS, ACLs, and IPv4/IPv6.
- Redundancy and Reliability: Features hot-swappable, redundant power supplies and fan modules.
- Management: Includes CLI, SNMP, and REST APIs.
Specifications:
Ports:
- 64x 100GbE (QSFP28)
- Multi-rate support for 10/25/40/50/100GbE
- Breakout Options:
- 128 x 50G
- 128 x 25G
- 128 x 10G
- 128 x 1G
- 64 x 40G—native 40G
- 128 x 40G via breakout
- 2x SFP+ 10GbE
- Micro USB type-B port (console)
- USB type-A port (external storage)
- RJ-45 Management port (Top)
- RJ-45 Console port (Bottom)
CPU memory: 16GB
Switch fabric capacity: 12.8Tbps (full-duplex)
Cooling:
- Four hot-swappable fan modules
- Airflow: Normal (IO to PSU) or reverse (PSU to IO)
Power:
- Two hot-swappable redundant power supplies
- 100-240VAC Input or option for DC PSU
- Max Power consumption: 1104 Watts
- Typical Power consumption: 340 Watts
Dimensions:
- 2 RU, 3.37” (h) x 17.04” (w) x 20.08” (d) / (8.56h x 44.2w x 51.0 cm d)
- Weight: 44lbs (20kg)
Additional information
| Weight | 45 lbs |
|---|---|
| Dimensions | 32 × 26 × 12 in |
| Number of Network Ports | 64 |
| Network Interface Type | QSFP28 |
| Rackmount-Size | |
| Network Interface Speed |
For current pricing based on your requirements, please contact us to request a detailed quote.
