Description

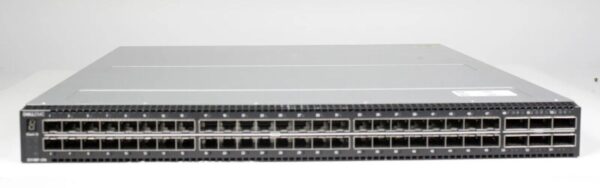

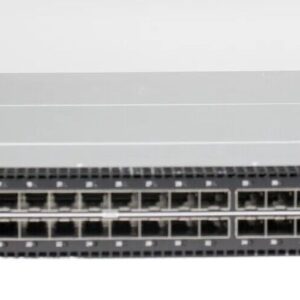

The Dell PowerSwitch S5148F-ON is a high-performance, open networking switch designed for modern data centers. It excels at handling demanding workloads with its fast 25GbE server connections and 100GbE uplinks. This switch provides a flexible and scalable solution, offering a choice of operating systems and advanced features, making it a great fit for cloud environments and businesses needing powerful and efficient network performance.

Specifications:

• Front Ports:
  • 48x 25GbE SFP28
  • 6x 100GbE QSFP28
• Rear Ports:
  • RJ45 console port with RS232 signaling
  • Micro-USB type B optional console port
  • 1x 10/100/1000 Base-T Ethernet management port
  • USB (Type A) port for configuration via USB flash drive
• Dell OS10 v10.4.3.6 is installed.
• License: OS10 perpetual license that does not expire
• Up to 3.6Tbps of switching I/O bandwidth (full-duplex)
• Dual (2) 750W watt hot-swap power supplies (100- 240 VAC)
• Four (4) hot swappable redundant fans
• Reverse Air flow: Power supply to front ports
• Dell part number: DR3YR (or similar)
• Size (1RU, H x W x D):
  • 1.72 in x 20 in depth x 17.1 in width
  • Shipping box size: 25 x 25 x inches
• 22 pound weight
• Includes a 90 Day SCSISTUFF parts replacement warranty which includes shipping of any user replaceable part.
• Condition: Used, tested. Firmware has been updated.

  Items included:

• S5148F-ON switch, serial port cable, 4 fans, dual power supplies, 2x power cords.
