Description

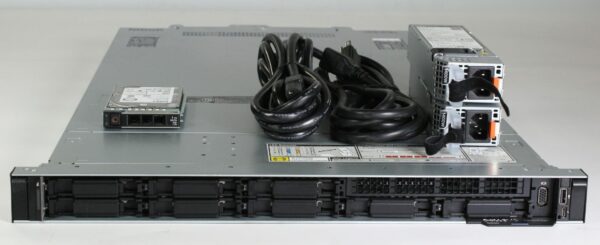

The PowerEdge R650 is a 1U, dual-socket rack server that is designed to deliver powerful performance for a wide range of demanding workloads. This server is powered by 3rd Generation Intel Xeon Scalable processors, offering a significant boost in performance and efficiency. Its compact design and high-density computing capabilities make it a strong choice for data centers with space constraints, and it is well-suited for applications such as virtualization, database management, and high-performance computing.

Processors: Single or dual Intel Xeon Scalable Processors (3rd Generation) with up to 40 cores per processor

Memory:

• 32 DDR4 DIMM slots with speeds of up to 3200MHz depending upon the processor
• Up to 2TB using RDIMMS & 8TB using LRDIMMs
• Up to 16 Intel Persistent Memory 200 series (BPS) slots, 12 TB max

Backplane options:

• 10 x 2.5-inch SAS/SATA/NVME
• 4 x 3.5-inch SAS/SATA
• 8 x 2.5-inch SAS/SATA/NVMe
• Optional rear backplane 2 x 2.5-inch SAS/SATA OR NVMe

Storage Controllers:

• SAS/SATA: PERC H745, HBA355I, , H355, H345, H755,
• Onboard Software RAID: S150
• NVME Hardware RAID: H755N
• Internal PCIe Boot Optimized Storage Subsystem (BOSS-S1): HW RAID 2 x M.2 SSDs 240 GB or 480 GB SATA
• Rear-Load Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB SATA
• External Controllers: PERC H840, HBA355E.

Storage:

• SAS, SATA or NVME SSDs
• 7.2k, 10k & 15k RPM SAS drives. 7.2k RPM SATA drives
• 10x 2.5″ Front Backplane can be cabled for up to 10 NVME-direct SSDs (4, 8 or 10) 8x NVME HW RAID with PERC H755N
• Optional Boot Optimized Storage Subsystem (BOSS) Card with up to two M.2 SATA SSDs in
  120GB, 240GB and 480GB capacities. Standalone or RAID 1.
• Optional Integrated Dual SD Module (IDSDM) with vFlash option. Bootable microSD cards with option for mirrored mode.

OCP 3.0 card options:

• 4 x 1GbE
• 2 x 10GbE (RJ45 or SFP+)
• 4 x 10GbE (RJ45 or SFP+)
• 2 x 10/25GbE SFP28
• 4 x 10/25GbE SFP28

PCIe expansion risers:

• Up to 3 x PCIe Gen4 low profile slots
  OR
• 2 x PCIe Gen4 full height slots

Power Supply Options:

• 700 W Titanium 200-240VAC
• 800 W Platinum 100-240VAC/9.2-4.7A | 240Vdc/3.8A
• 1100 W Titanium 100-240VAC/12.65-6.3A | 240Vdc/5.2A
• 1400 W Platinum 100-240VAC/12-8A | 240Vdc 6.6A
• 1800 W Titanium 200-240VAC
• 1100 W -48~-60Vdc/27A

Bezel Options:

• LCD bezel with control panel
• Security bezel

Cooling:

• Air cooling with 4x hot plug fan modules, each with four fans per module.
  Standard, high performance / silver (HP/SLVR) & very high performance / gold (VHP/GOLD)
• Optional processor liquid cooling

Rail Options:

• Sliding 4-Post ReadyRails II (Type A15) with optional cable management arm
• Stab-in Static 2/4-Post ReadyRails (Type A14)
• Drop-in/Stab-in 4-Post Generic Tool-less (Type A16) with optional cable management arm

Security:

• Optional TPM 1.2 or TPM 2.0 module

Embedded Management:

• iDRAC9 Express (standard), Enterprise (licensed) or Datacenter (licensed)
• iDRAC Service Module
• iDRAC Direct
• Optional Left Ear with Quick Sync 2 wireless module

Dimensions:

• Height – 42.8 mm (1.7 inches)
• Width – 482 mm (18.97 inches)
• Depth – 758.27 mm (29.85 inches) – without bezel
  772.11 mm (30.39 inches) – with bezel

Ports:

• Front Ports: 1 x Dedicated iDRAC Direct micro-USB, 1 x USB 2.0, 1 x VGA,
• Internal Ports: 1 x USB 3.0
• Rear Ports: 1 x Dedicated BMC/iDRAC Ethernet port, 1 x VGA, 2 x USB 3.1 Type A ports
  2 x 1 GbE LOM (Embedded NIC)
