Description

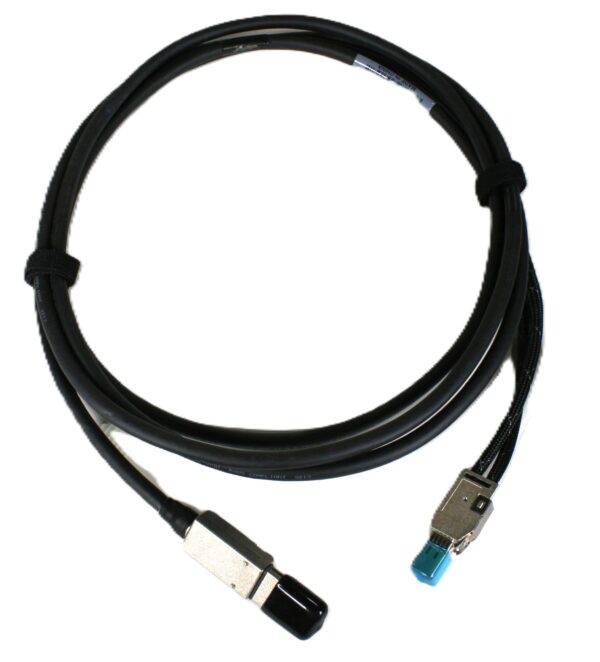

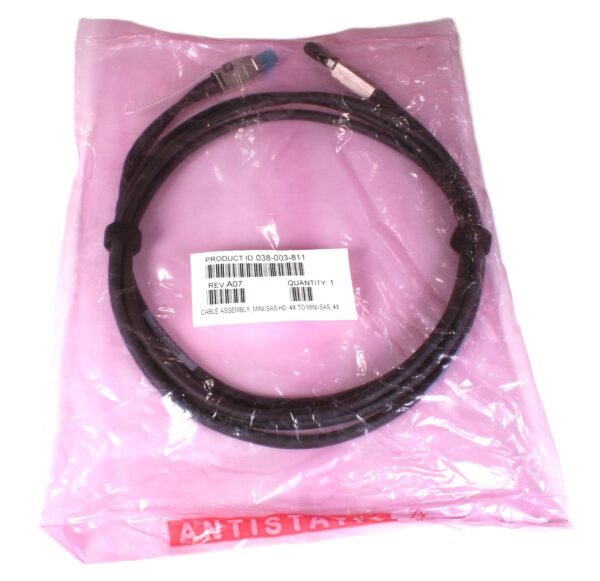

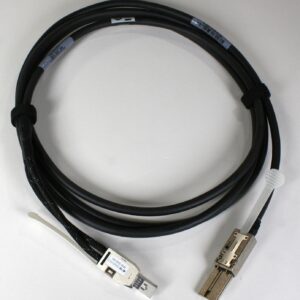

EMC Mini-Sas to Mini-Sas HD external cable

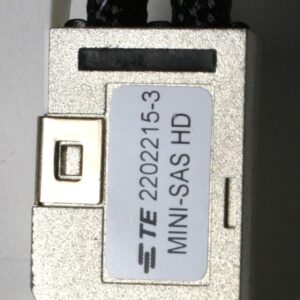

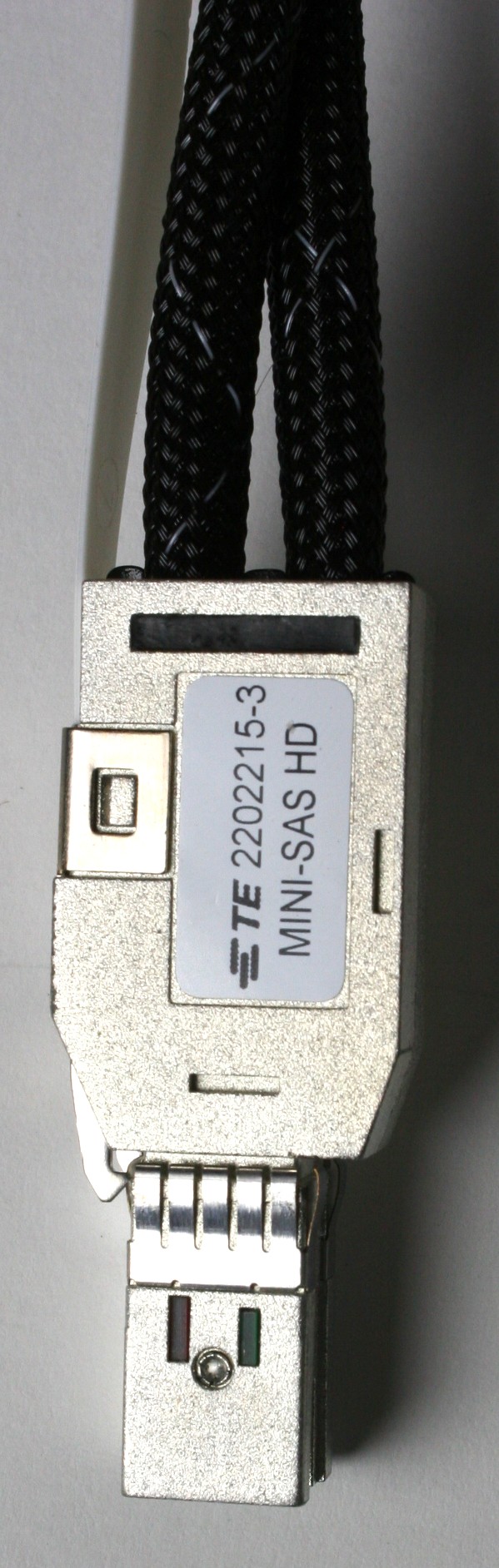

SFF-8088 to SFF-8644 connectors
Cables / Connectors are manufactured by Molex
The SFF-8088 connector has a circle icon & is keyed to attach to an enclosure out port (not in), an end device or an enclosure universal port (key slot positions 2 & 4)

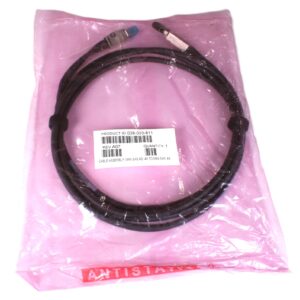

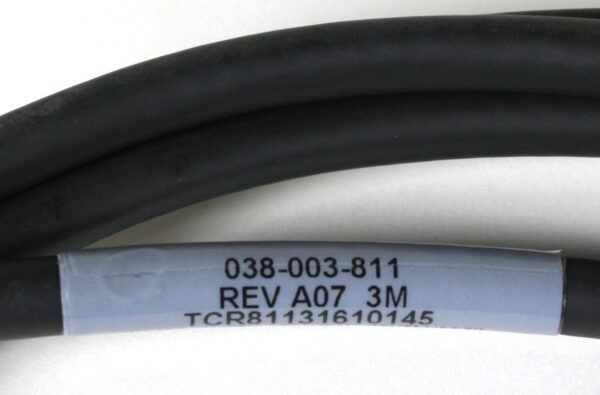

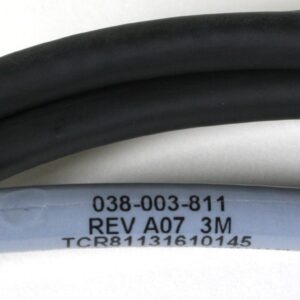

EMC # 038-003-811
Release mechanism are pull tabs
Cable length is 3 meter plus length of SAS connectors.
Molex cable (UL) type CL2 75C 30 AWG EXF E117273 Rohs compliant 34713

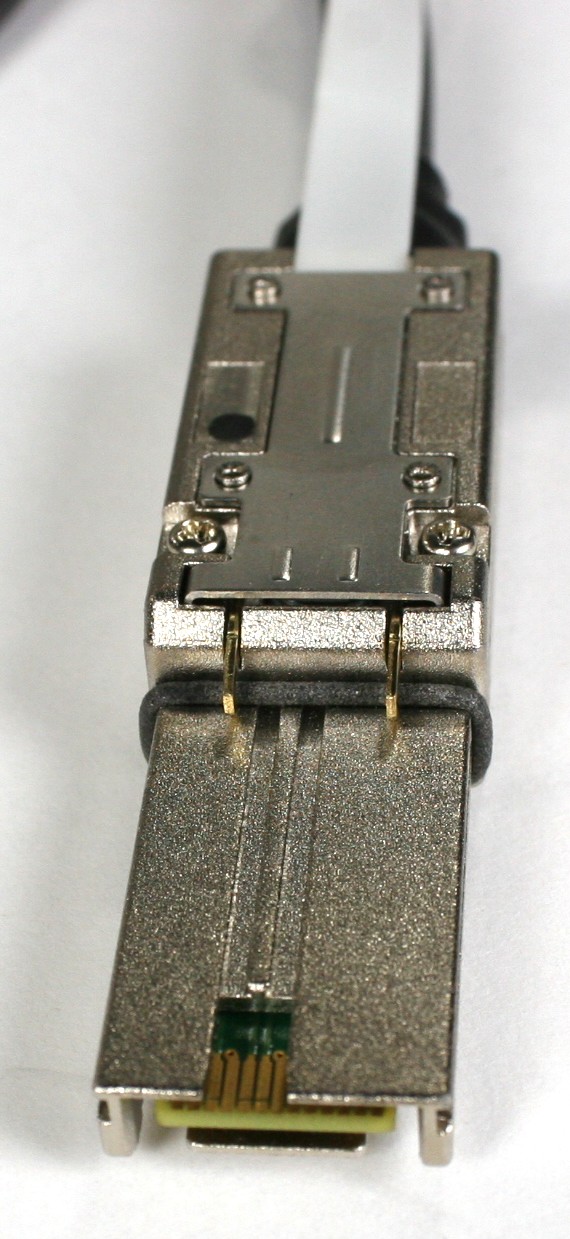

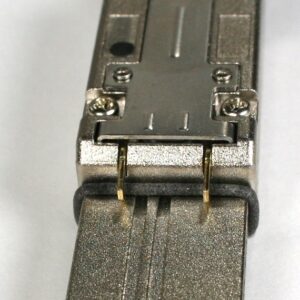

Mini Sas connectors is the keyed two slot version ( see picture above)
One end fits the controller, the other end fit the receiver

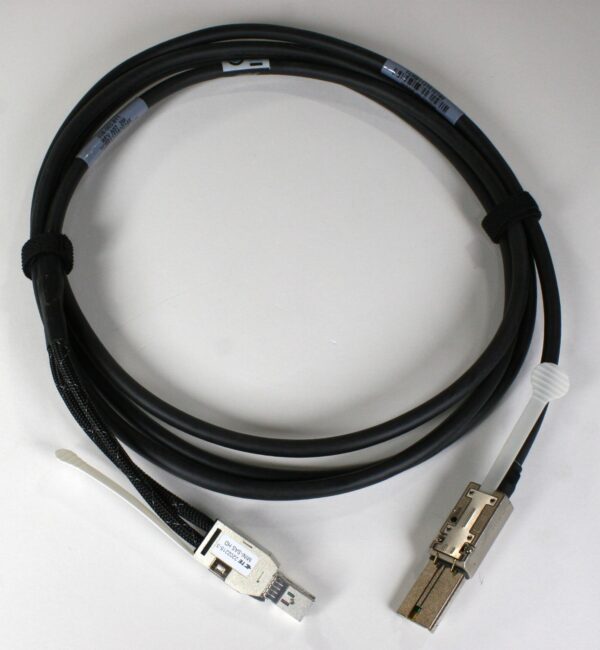

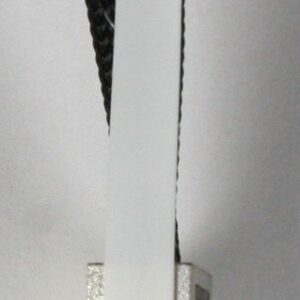

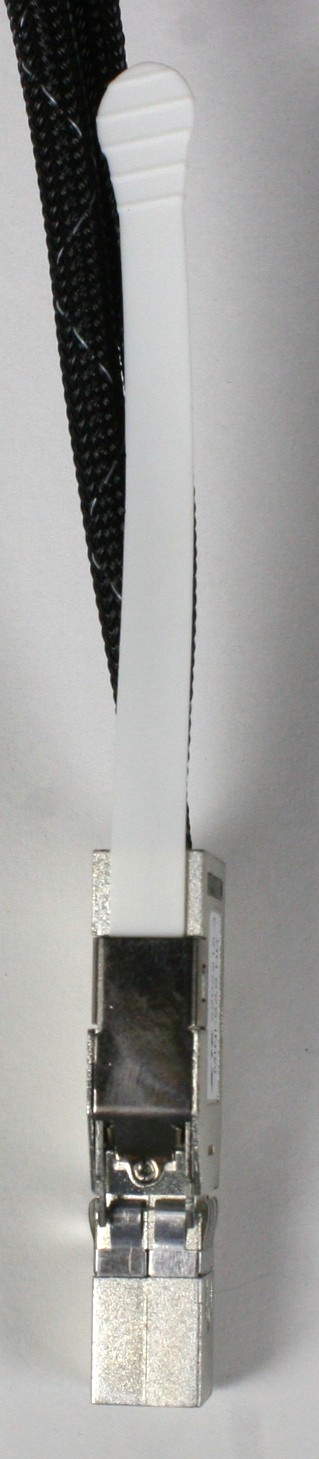

Release mechanism is via the white pull tab.
Length is 3 meters.
